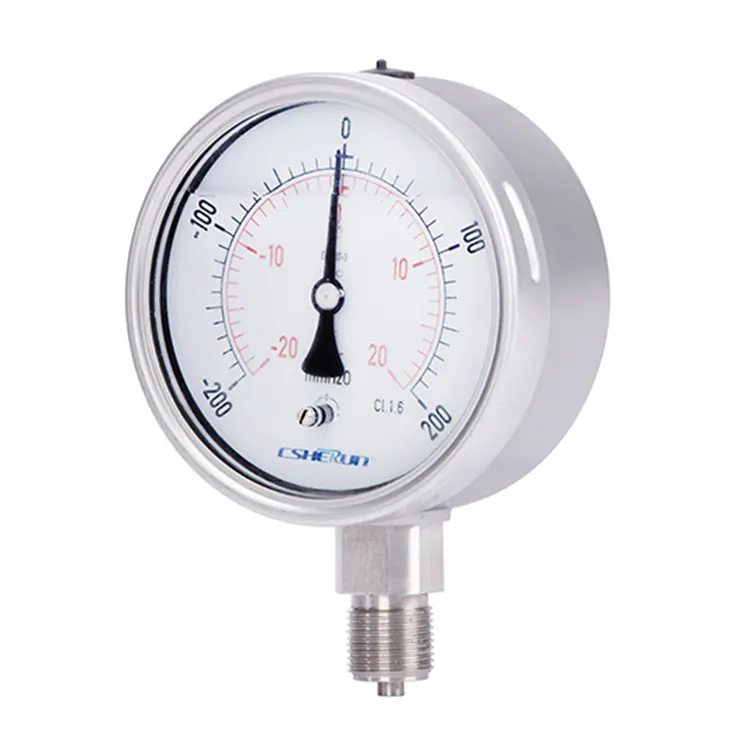

How to Choose the Right Capsule Pressure Gauge for Your Application

Selecting the right capsule pressure gauge can significantly impact the accuracy and reliability of pressure monitoring in your system. With various types and features available, it’s essential to consider specific factors to make an informed choice.

1. Understand Your Pressure Range Requirements

Capsule pressure gauges are designed for low-pressure applications. Identify the pressure range your system operates in and select a gauge with a corresponding range for optimal accuracy. For example, a gauge rated for 0–250 mbar is ideal for extremely low-pressure systems.

2. Consider the Media Compatibility

The material of the capsule element must be compatible with the media (gas or liquid) being measured.

- Brass: Suitable for non-corrosive gases and liquids.

- Stainless Steel: Ideal for mildly corrosive or harsh environments.

- Monel: Used for highly corrosive applications.

3. Evaluate the Environmental Conditions

Consider factors like temperature, humidity, and exposure to corrosive substances. Choose a gauge with appropriate protection ratings to withstand these conditions.

4. Dial Size and Mounting Options

Capsule pressure gauges come in various dial sizes and mounting configurations. Larger dials are easier to read from a distance, while smaller ones save space. Common mounting options include:

- Panel Mounting: For integration into control panels.

- Surface Mounting: For direct attachment to surfaces.

5. Accuracy Class

Check the accuracy class of the gauge. For critical applications, choose gauges with higher accuracy ratings (e.g., Class 1.0 or Class 0.6).

6. Certification and Standards

Ensure the gauge meets industry standards and certifications, such as ISO or ASME, for reliable performance and compliance with regulations.

Why Choosing the Right Capsule Pressure Gauge Matters

Using an incorrect gauge can lead to inaccurate readings, system inefficiencies, or even damage to equipment. Proper selection ensures:

- Operational Safety: Accurate readings prevent system overload or failure.

- Longer Lifespan: Compatibility with the application reduces wear and tear.

- Enhanced Efficiency: Precise monitoring leads to better control of processes.

Conclusion

Selecting the right capsule pressure gauge requires careful evaluation of your application’s requirements, media compatibility, and environmental conditions. By making an informed choice, you can ensure accurate low-pressure monitoring, enhancing the efficiency and safety of your operations.

Capsule pressure gauges might be small, but their impact on precision measurement is immense. Ensure you pick the right one for your specific needs!
