Choosing the Right Push Button Switch: A Guide to Features and Specifications

Push button switches are a key component in many electrical and electronic systems, used to control everything from lights to complex machinery. With so many types and features available, selecting the right push button switch for a particular application can be challenging. In this blog post, we'll guide you through the key features and specifications to consider when choosing a push button switch, helping you make an informed decision for your project.

Key Features to Consider When Choosing a Push Button Switch

1. Type of Operation: The first consideration when selecting a push button switch is the type of operation required. As discussed in the previous blog, there are two main types: momentary and maintained. Momentary switches are ideal for applications where the switch needs to return to its original state after being pressed, such as in doorbells or keyboards. Maintained switches, on the other hand, are suitable for applications where the switch needs to stay in its last position until pressed again, such as light switches or power buttons.

2. Electrical Ratings: Push button switches are rated for specific voltage and current levels. It is crucial to choose a switch that can handle the electrical load of your application. Using a switch with a lower rating than required can lead to overheating, electrical faults, or even fires. Check the switch's specifications for voltage (V) and current (A) ratings to ensure compatibility with your electrical system.

3. Contact Configuration: The contact configuration of a push button switch determines how it controls the flow of electricity. Common configurations include SPST (Single Pole Single Throw), SPDT (Single Pole Double Throw), DPST (Double Pole Single Throw), and DPDT (Double Pole Double Throw). The choice of configuration depends on how many circuits you need to control and the complexity of your application.

4. Actuator Design: The design of the actuator, or the part of the switch that is pressed, can vary significantly. Options include round, square, or rectangular buttons, as well as illuminated or non-illuminated designs. The choice of actuator design can impact both the aesthetics and functionality of the switch. For example, illuminated push button switches are useful for indicating the status of the switch, such as whether it is on or off.

5. Mounting Style: Push button switches can be mounted in various ways, including panel mount, PCB mount, and surface mount. The mounting style affects how the switch is installed and integrated into the device or system. Panel mount switches are common for user interfaces, while PCB mount switches are used in electronic circuit boards.

6. Durability and Environmental Resistance: In applications where the push button switch will be exposed to harsh conditions, such as moisture, dust, or extreme temperatures, it's essential to choose a switch with high durability and environmental resistance. Look for switches with IP (Ingress Protection) ratings that indicate their level of protection against water and dust. Switches with high IP ratings are suitable for outdoor or industrial applications.

7. Mechanical Life: The mechanical life of a push button switch refers to the number of times the switch can be operated before it fails. This is an important factor to consider for applications where the switch will be used frequently. Switches with a high mechanical life are designed to withstand repeated use, ensuring long-term reliability.

Special Features of Push Button Switches

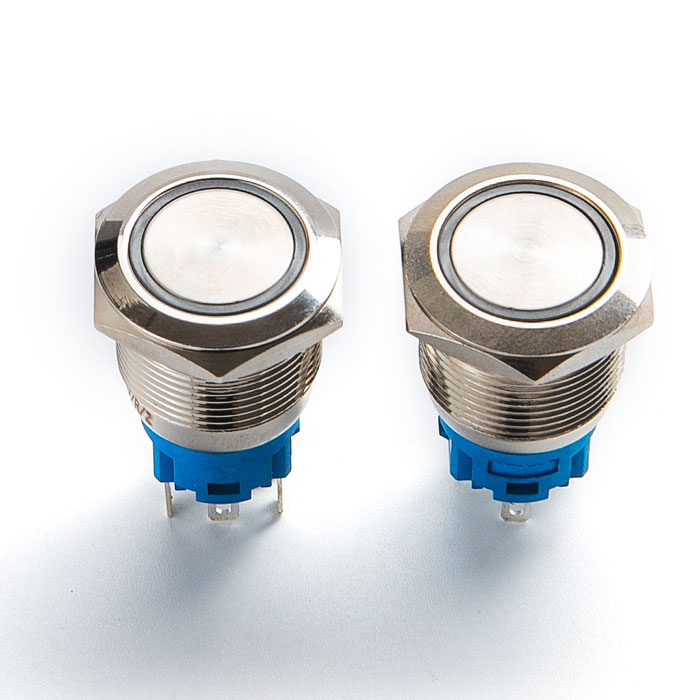

1. Illuminated Switches: These switches have built-in LEDs or other light sources that illuminate the button. Illuminated switches are useful for providing visual feedback to the user, indicating the status of the switch (e.g., on or off). They are commonly used in control panels, appliances, and automotive dashboards.

2. Locking Mechanisms: Some push button switches have locking mechanisms that require a key or specific action to operate. These switches provide added security and prevent unauthorized use, making them suitable for applications where safety is a concern.

3. Emergency Stop Switches: Designed for safety applications, emergency stop switches are large, highly visible, and easy to activate. They are typically used in industrial settings to quickly shut down machinery in the event of an emergency, protecting both personnel and equipment.

4. Touch-Sensitive Switches: These switches use capacitive or resistive sensing technology to detect the touch of a finger, eliminating the need for physical movement. Touch-sensitive push button switches are common in modern electronic devices, such as smartphones and touchscreens, offering a sleek and responsive user interface.

Applications of Push Button Switches with Special Features

- Control Panels: Push button switches with illuminated or touch-sensitive features are widely used in control panels for machinery, appliances, and industrial equipment. They provide clear visual feedback and easy operation, enhancing the user experience.

- Medical Devices: In medical devices, push button switches must be highly reliable, durable, and easy to clean. Touch-sensitive or membrane-type push button switches are commonly used, providing a hygienic and responsive interface.

- Home Automation: Push button switches with smart features, such as wireless connectivity or programmable functions, are increasingly used in home automation systems. These switches allow users to control lighting, appliances, and security systems remotely.

- Automotive: In vehicles, push button switches are used for various functions, including starting the engine, controlling windows, and operating entertainment systems. Illuminated switches provide visibility in low-light conditions, enhancing safety and convenience.

Conclusion

Choosing the right push button switch involves considering various factors, including the

type of operation, electrical ratings, contact configuration, actuator design, mounting style, and special features. By understanding these aspects, you can select a switch that meets the specific needs of your application, ensuring reliable and efficient operation. Whether you're designing a household appliance, industrial machinery, or a high-tech gadget, push button switches are a versatile and essential component that plays a crucial role in the functionality of your device.
