Aspects and steps involved in CNC precision machining

2023-10-16

CNC precision machining, also known as computer numerical control precision machining, is a manufacturing process that utilizes computer-controlled machines to create precise and complex parts from various materials. It involves the use of cutting tools and advanced CNC machines to remove material and shape components according to the specified design.

Here are some key aspects and steps involved in CNC precision machining:

1. CAD/CAM Design: The process begins with the creation of a computer-aided design (CAD) model of the desired component. The CAD model defines the geometry, dimensions, and specifications of the part. Computer-aided manufacturing (CAM) software is then used to convert the CAD model into machine-readable instructions for the CNC machine.

2. Material Selection: The appropriate material for the component is chosen based on factors such as strength requirements, functional characteristics, and the intended application. Common materials used in CNC precision machining include metals (e.g., aluminum, steel, titanium), plastics, composites, and even certain types of ceramics.

3. CNC Machining Setup: The CNC machine is prepared for machining by setting up the cutting tools, workholding devices (such as clamps or fixtures), and the material to be machined. The CNC machine is programmed with the toolpaths and instructions necessary to create the desired part.

4. Machining Operations: The CNC machine follows the programmed instructions and performs a series of machining operations to shape the part. These operations can include milling, turning, drilling, boring, threading, reaming, tapping, and more. The cutting tools remove material from the workpiece, guided by the CNC machine's precise movements.

5. Quality Control: Throughout the machining process, quality control measures are implemented to ensure the accuracy and integrity of the part. This can involve the use of measurement tools such as calipers, micrometers, or coordinate measuring machines (CMMs) to verify dimensional accuracy and adherence to specifications.

6. Finishing Operations: After the machining process, the part may undergo additional finishing operations, such as deburring, polishing, grinding, or surface treatments, to achieve the desired surface finish, cleanliness, and functional requirements.

CNC precision machining offers several advantages, including high accuracy, repeatability, and the ability to create complex parts with tight tolerances. It enables efficient production, reduces human error, and allows for greater design flexibility. CNC machines can be used for prototyping, small-scale production, and large-scale manufacturing, depending on the specific needs and volume requirements.

It's worth noting that CNC precision machining can involve various types of CNC machines, such as CNC milling machines, CNC turning machines, CNC grinding machines, and CNC drilling machines, each suited for specific machining operations and requirements.

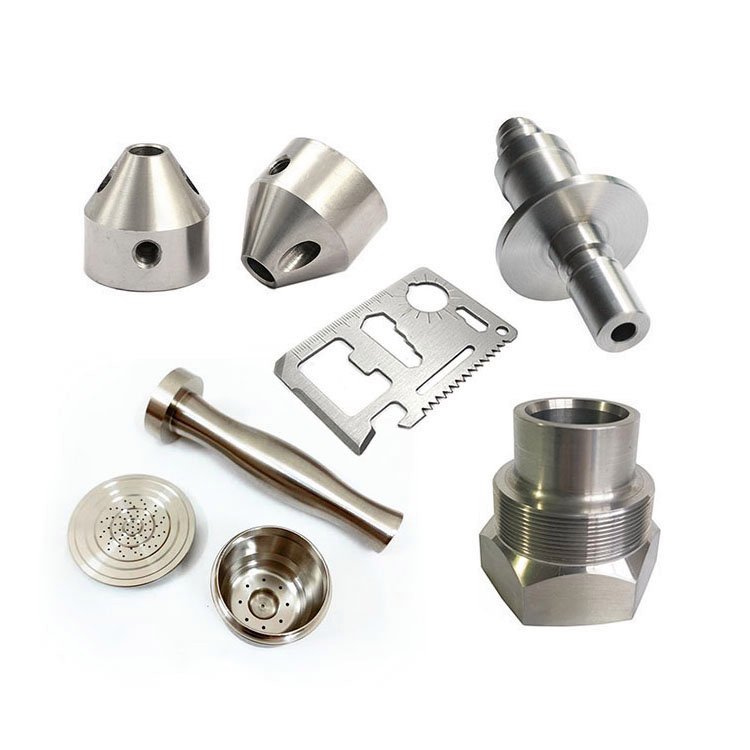

Overall, CNC precision machining plays a crucial role in the manufacturing industry, providing efficient and precise production of components across a wide range of industries, including automotive, aerospace, medical, electronics, and many others.cnc-machining-stainless-steel-parts_51931.jpg
