A waterjet accumulator typically consists of the following components

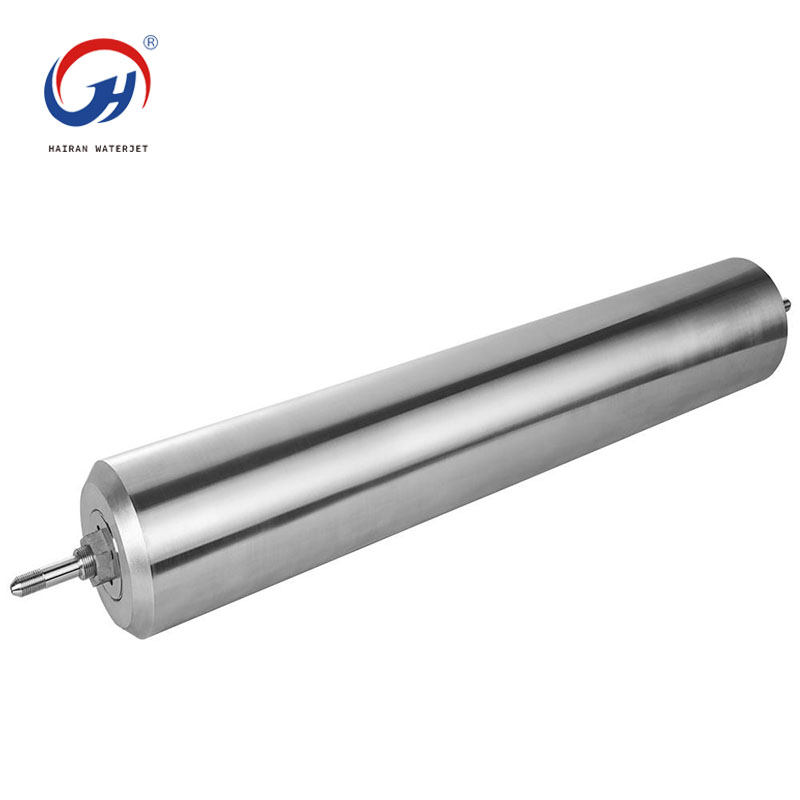

A waterjet accumulator is a component used in waterjet cutting systems to maintain a consistent and stable water pressure for optimal cutting performance. Waterjet cutting is a precision machining process that uses a high-pressure stream of water mixed with abrasive particles to cut through various materials, including metals, ceramics, and composites. The waterjet accumulator helps regulate and provide a steady supply of pressurized water to the cutting nozzle.

Function and Purpose:

1. Pressure Stabilization: Waterjet cutting requires a constant and consistent high-pressure water stream to efficiently cut through materials. Fluctuations in water pressure can negatively impact the quality and accuracy of the cut. The accumulator helps stabilize the pressure by storing and releasing water as needed.

2. Pressure Pulsation Dampening: Waterjet pumps can generate pressure pulsations due to the reciprocating nature of the pump's operation. These pressure fluctuations can affect the cutting process and lead to inconsistent cuts. The accumulator dampens these pressure pulsations, resulting in a smoother and more even water stream.

3. Flow Compensation: Waterjet cutting systems may have variations in flow demand based on the thickness and type of material being cut. The accumulator helps compensate for these flow changes and ensures that the cutting nozzle receives a continuous supply of pressurized water.

Components and Operation:

A waterjet accumulator typically consists of the following components:

1. Pressure Vessel: The main body of the accumulator is a pressure vessel that stores pressurized water. This vessel is designed to withstand high pressures and is equipped with safety features to prevent over-pressurization.

2. Bladder or Piston: Inside the pressure vessel, there is often a bladder or piston that separates the water from a gas (usually nitrogen) on the other side. As water enters the accumulator, the bladder or piston compresses the gas, storing potential energy that can be released to maintain pressure.

3. Control System: The control system monitors the water pressure in the system and triggers the release of stored energy from the gas to the water when pressure drops below a set threshold. This helps maintain a consistent pressure at the cutting nozzle.

Benefits:

- Consistent Cutting Quality: By providing a steady and stable water pressure, the accumulator ensures uniform and high-quality cuts throughout the cutting process.

- Reduced Wear and Tear: By dampening pressure pulsations, the accumulator can help extend the lifespan of components in the waterjet cutting system, including seals, nozzles, and pumps.

- Enhanced Efficiency: The accumulator helps optimize the performance of the waterjet cutting system, resulting in increased cutting efficiency and reduced cycle times.

- Versatility: Waterjet accumulators are used in a wide range of waterjet cutting applications, from small-scale precision cutting to large-scale industrial operations.

In summary, a waterjet accumulator is a vital component in waterjet cutting systems that ensures a consistent and stable supply of pressurized water, contributing to accurate and efficient cutting processes across various materials and applications.
